1017 DC V/I/R Multifunction Calibrator

All about product
Specification
Reviews
0
Questions
0
Product Code: 1017
Brand: Time Electronics
Reviews: 0
0.00₴
Ex Tax: 0.00₴
Specifications: (See all)
Additional features
Deviation Control (V&I) 0 % to 0.999 % in 0.001 % steps. Deviation accuracy: V & I output, 0.5 %
Output Resistance
10 mV and 100 mV: 10 Ω. 1 V and 10 V: < 150 mΩ. 100 V: < 1 Ω
Power Rating
0.25 W per resistor
Power supply
230 V AC 50/60 Hz
Residual Resistance
Less than 200 mΩ
Description

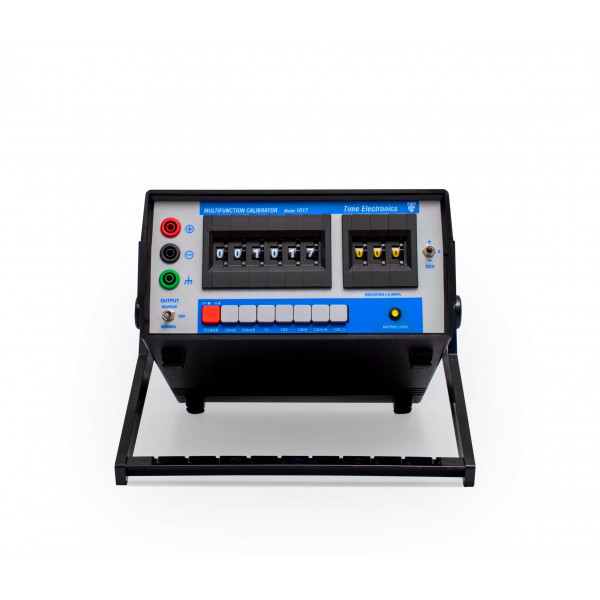

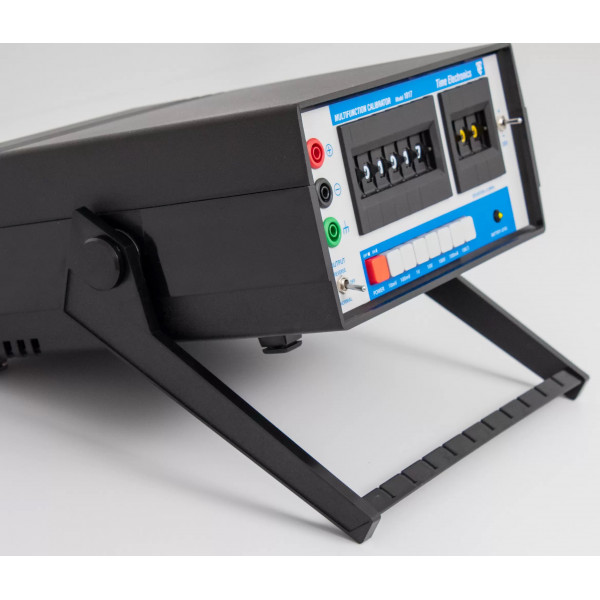

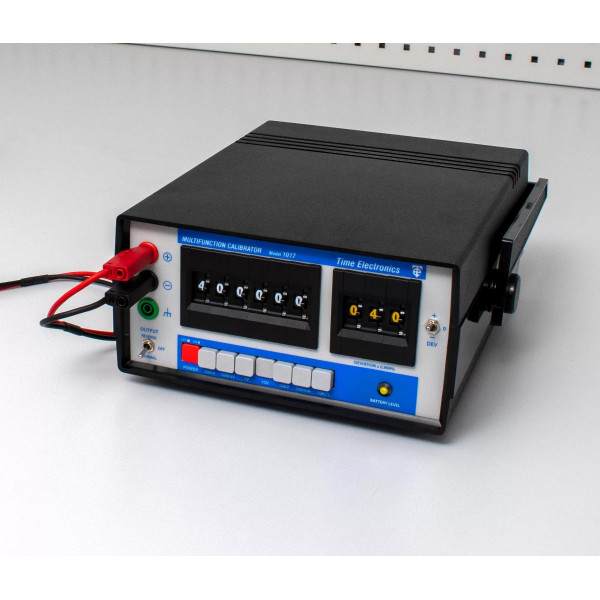

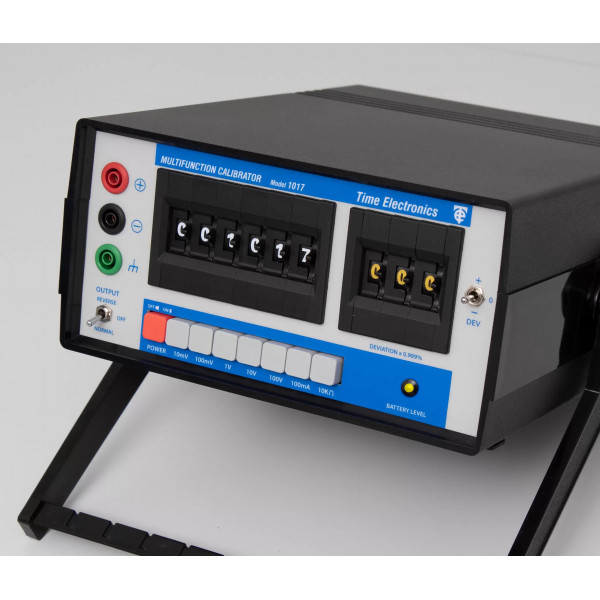

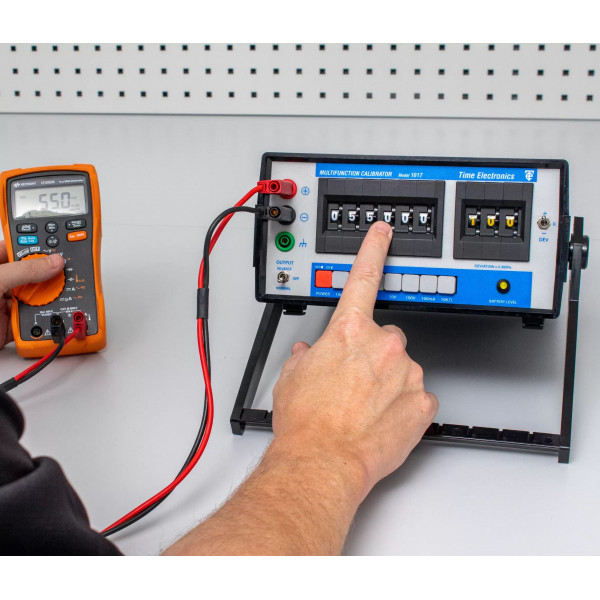

A high performance portable multifunction calibrator with voltage, current, and resistance ranges. The 1017 combines precision with simple operation, making it suitable for use in the workshop or field. Constructed in a compact and durable plastic case with a tilt stand/carry handle, the instrument takes up minimal bench space and is easily transportable.

Five DC voltage ranges from 10 mV to 100 V full scale are available, with 6-digit (1 ppm) resolution. The DC current range is 100 mA full scale with a 100 nA (1 ppm) resolution. Resistance from 0.01 Ω to 10 kΩ is available 0.01 Ω steps.

Stability and Temperature Coefficient

Long-term stability is achieved by the use of high quality components and modern resistor technology. The 1017 features a precision reference diode that provides the input to the units active circuitry. The special low-thermal emf terminals reduce errors when working with microvolt signals.

Specifications
Main characteristics
Output Resistance
10 mV and 100 mV: 10 Ω. 1 V and 10 V: < 150 mΩ. 100 V: < 1 Ω
Power Rating
0.25 W per resistor
Residual Resistance
Less than 200 mΩ
Resistance measurement range
0 to 9.99999 kΩ in 0.01 Ω steps / ± 0.05 % of full scale
Temperature Coefficient
Voltage and current ranges: < 10 ppm/°C. Resistance ranges: < 30 ppm/°C
Max Current
10 and 100 mV: as 10 Ω output resistance. 1 V and 10 V: 150 mA; 100 V: 10 mA
Technical data
Long-term
< 5 ppm/day, < 15 ppm/90-day, < 25 ppm/year
Additional features
Additional features
Deviation Control (V&I) 0 % to 0.999 % in 0.001 % steps. Deviation accuracy: V & I output, 0.5 %
Measurement and analysis
Measurement range
0 to 99.9999 mA in 0.1 μA steps / ± 0.02 % of setting ± 0.004 % of range
Autonomy
Power supply
230 V AC 50/60 Hz
Environmental parameters
Working temperature
0 to 50 °C
Physical parameters
Size
W 250x H 119 x D 314 mm
Weight
2.4 kg
