5051Plus Multifunction Calibration System

All about product
Specification
Reviews
0
Questions
0
Product Code: 5051Plus
Brand: Time Electronics
Reviews: 0
0.00₴
Ex Tax: 0.00₴
Specifications: (See all)
AC measurement
0 to 3 A (0.1 % of rdg + 0.04 % of rng)
AC voltage measurement
0 to 750 V (0.06 % of rdg + 0.04 % of rng)
Additional options
9769 Internal Scope 2.2 GHz Levelled Sine Generator (see specifications tab for details) / 9762 External Rubidium Frequency Reference - View data sheet / 9764 Current Probe Calibration Adaptor - View data sheet / 9790 100 Amp AC Current Transformer - View data sheet / 9760 Power Amplifier (60 V AC, 90 V DC, 100 mA) - View data sheet / 5077-S2 Power Calibrator - View data sheet / 9766 External Low Noise Attenuator 1000:1 - View data sheet / 9767 External Low Noise Attenuator 100:1 - View data sheet / C134 UKAS Calibration Certificate (ISO 17025)
Amplitude (Oscilloscope)
6 mV to 200 V and 6 mV to 2 V 50 Ω (square-wave or DC) (± 0.05 %)
Capacitance
1 nF, 10 nF, 100 nF, 1 μF, 10 μF, 100 μF (100 V max) (± 0.25 % of setting)
Description

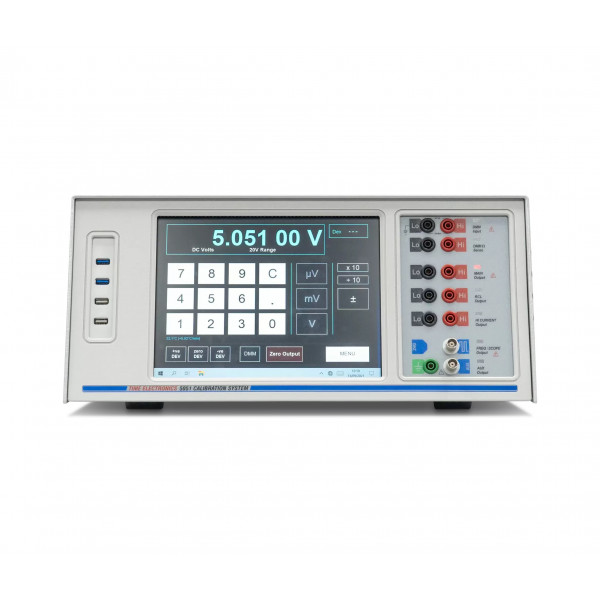

The 5051Plus combines a precision multifunction calibrator, 6.5 digit multimeter, and industrial touch screen PC. Offering high performance calibration and maximum functionality, it provides the foundation for an efficient calibration program.

By integrating the calibrator, multimeter and PC in one unit, minimal bench space is used in the laboratory. This is also beneficial for on-site calibration work as the 5051Plus replaces the need for transporting several instruments. The unit can be set up in a compact workspace to test electrical, electronic and process instruments and devices.

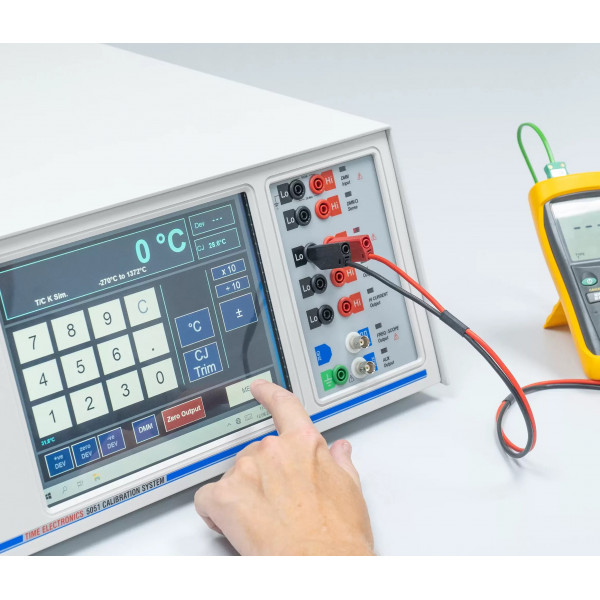

With automatic source and measure capabilities the system can calibrate a wide range of products quickly and efficiently. Test and verify multimeters, clamp meters, decade boxes, thermocouple indicators and sensors, tacho meters, frequency meters, oscilloscopes, timer counters, RTDs and much more.

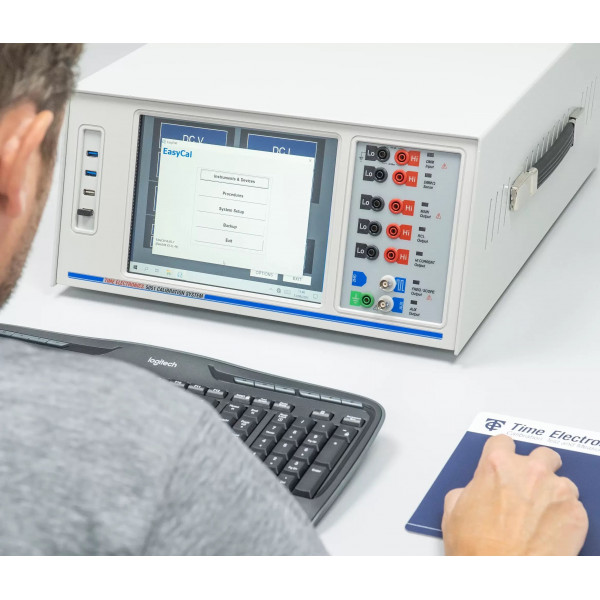

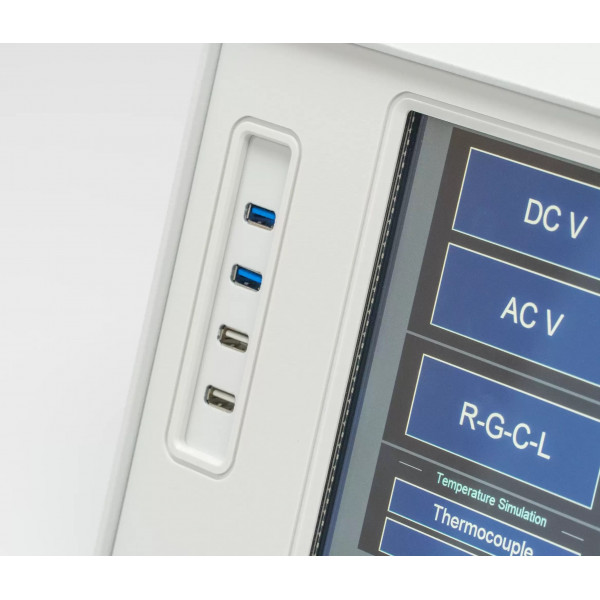

EasyCal software enables automated testing and calibration management from one station. Workload and parameter coverage can be increased by connecting EasyCal compatible test instruments to the system via the front panel USB ports.

Specifications
Main characteristics
AC measurement
0 to 3 A (0.1 % of rdg + 0.04 % of rng)
AC voltage measurement
0 to 750 V (0.06 % of rdg + 0.04 % of rng)
Amplitude (Oscilloscope)
6 mV to 200 V and 6 mV to 2 V 50 Ω (square-wave or DC) (± 0.05 %)
Capacitance
1 nF, 10 nF, 100 nF, 1 μF, 10 μF, 100 μF (100 V max) (± 0.25 % of setting)
Conductance
1 s to 1 ns (Fixed values, decade steps) (± 20 ppm of setting)
Current AC
10 μA to 22 A (20 Hz to 1 kHz, sine-wave) (± 0.05 % of setting) Current up to 1000 A (DC, 45 to 90 Hz) (± 0.5 %)
Current DC
0 to ± 22 A (± 80 ppm of setting) Current up to 1000 A (DC, 45 to 90 Hz) (± 0.5 %)
DC measurement
0 to 3 A (500 ppm of rdg + 50 ppm of rng)
DC voltage measurement
0 to 1000 V (35 ppm of rdg + 6 ppm of rng)
Duty cycle (Oscilloscope)
3 frequencies: 100 Hz, 1 kHz, 10 kHz, settable from 0 to 100 %
Fast-rise (Oscilloscope)
<400 ps. Bandwidth checking up to 400 MHz
Frequency (Oscilloscope)
0.1 Hz to 100 MHz (± 0.1 ppm)
Period (Oscilloscope)
10 ns to 10 s (± 20 ppm: 20-100 MHz)
Resistance
1 Ω to 120 MΩ variable (± 100 ppm of setting)
Resistance measurement
0 to 100 MΩ (100 ppm of rdg + 50 ppm of rng)
Voltage AC
1 mV to 1050 V (10 Hz to 1 MHz, sine-wave) (± 300 ppm of setting)
Voltage DC
0 to ± 1050 V ± (15 ppm of setting)
Decade
1 Ω to 1 GΩ (decade values) (± 20 ppm of setting)
Temperature range
-270 to 1800 °C (Type J, K, R, T, S, B, E, N) (± 0.5 °C) / Pt100 -180 to 850 °C (± 0.08 °C)
Specifications
Warm up
30 minutes to full accuracy
Technical data
Display
10.4 in LCD (touch screen)
Autonomy
Power supply
100 to 230 V AC 50/60 Hz
Environmental parameters
Working temperature
5 to 40 °C
Storage temperature
-10 °C to 50 °C
Working humidity
< 80 %
Physical parameters
Size
W 430 x H 202 x D 538 mm
Weight
23 kg
Power consumption
200 W maximum
Completeness
Additional options
9769 Internal Scope 2.2 GHz Levelled Sine Generator (see specifications tab for details) / 9762 External Rubidium Frequency Reference - View data sheet / 9764 Current Probe Calibration Adaptor - View data sheet / 9790 100 Amp AC Current Transformer - View data sheet / 9760 Power Amplifier (60 V AC, 90 V DC, 100 mA) - View data sheet / 5077-S2 Power Calibrator - View data sheet / 9766 External Low Noise Attenuator 1000:1 - View data sheet / 9767 External Low Noise Attenuator 100:1 - View data sheet / C134 UKAS Calibration Certificate (ISO 17025)
Package contents
5051Plus Calibration System / 9780 Clamp Meter Adaptor / 9773 Optical Tacho Adaptor / 9796 Premium Test lead Set / 9082 Soft Carry Case / 9795 Printer & Connectivity Kit (Printer, DVD-RW, 4 port USB hub, Numeric key pad, USB memory stick) / Wireless USB Keyboard and Mouse / 9778 Cal and ID Label Printer / 9777 Bar Code Reader / ECFLA EasyCal Calibration Software / Traceable Calibration Certificate (factory)
