Specifications:
(See all)
Measuring range
Pt100 -200°С...+850°С
Thermocouple according to DIN (-200°C...+1760°C)
Accuracy
Pt100 ±0.1°C from -100°C...+200°C
0.1% remaining range
Thermocouple R, S ±1.0°C +0.1%
Thermocouple K, J, L, N, T
±0.2°С from 0°С...+200°С
±0.5°C up to 1000°C
±1.0°C remaining range
Permission
0.1°C remaining range
Display resolution
2-line LCD
Measurement channels
Inputs 2-channel, Pt100, thermocouple: type K, J, L, N, R, S, T

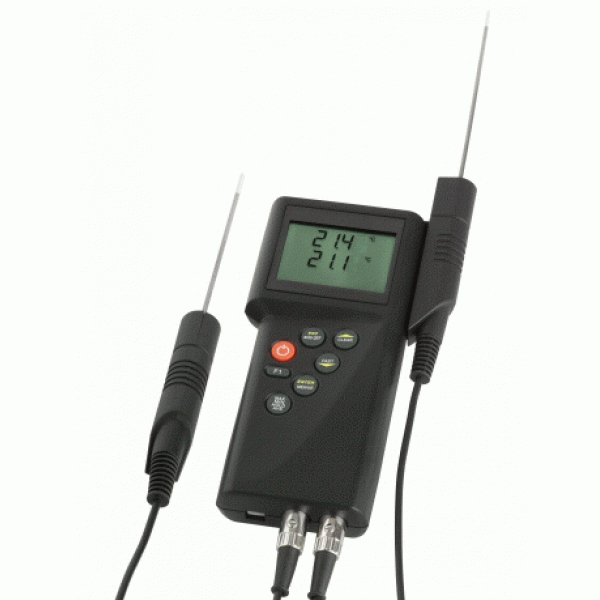

Universal talent for temperature measurement with Pt100 sensor ranging from -200°C to +850°C and thermocouple (type J, K, L, N, R, S, T) up to +1760°C with a resolution of 0.1°C over the entire measuring range. Ideal for quality service and production
The P700 series of versatile, process-controlled hand-held instruments are ideal for measurement applications that require high counting accuracy or online documentation.
Technical data
Measuring range
Pt100 -200°С...+850°С
Thermocouple according to DIN (-200°C...+1760°C)
Accuracy
Pt100 ±0.1°C from -100°C...+200°C
0.1% remaining range
Thermocouple R, S ±1.0°C +0.1%
Thermocouple K, J, L, N, T
±0.2°С from 0°С...+200°С
±0.5°C up to 1000°C
±1.0°C remaining range
Permission
0.1°C remaining range
Display resolution
2-line LCD
Measurement channels
Inputs 2-channel, Pt100, thermocouple: type K, J, L, N, R, S, T
Connectors
DIN connectors 8-pole
Operating temperature
0°C...+40°C
Weight
350 g
Housing
Plastic
Power supply
Battery 9 V
Battery life
approx. 20 h
Dimensions
200 x 93 x 44 mm (LxWxH)
