Specifications:
(See all)
Power interface
DC12V
Product size
≤173mm × 184mm × 212mm
Standard
Thermographic camera/black body/PC/4-port switch/power cord and network cable/stand
Detector type
Vox
Language version
Chinese/English
The IR236 equipped with various powerful functions. Multi-target tracking can ensure that no targets are missed. Custom warning zones and high-temperature shielding settings can avoid interference from other high-temperature objects. When detect the febrile people, it supports automatic warning, tracking and photo taking for storage. Support video recording. Convenient to query and classify management. GUIDE IR236 is the ideal equipment for epidemic prevention in public places such as airports, stations, factories, schools, commercial centers and more.
Hardware interface
Power interface
DC12V
Network interface
Two 100M/1,000m Ethernet ports
Thermographic parameters
Detector type
Vox
Detector resolution
400×300
Pixel size
17μm
Spectrum range
8μm～14μm
NETD
≤40mK@30℃
Thermographic camera lenses
9.7mm,38°×28°
Image flip
Available
Pseudo color
9 pseudo colors: White Hot, Black Hot, Fulgurite, Rainbow and so on
Temperature measurement parameters
Measurement accuracy
≤±0,3℃
Measurement range
-10℃~50℃
Cold/hot spot tracking
Available
Full-screen point temperature measuring
Available
Visible light parameters
Sensor type
1/2.8" CMOS
Maximum resolution
1920x1080
Visible light gain control
Auto/manual
Visible light noise reduction
2D/3D noise reduction
Backlight compensation
Available
Wide dynamic
Available
Strong-light photoinhibition
Available
Image flip1
Available
Exposure compensation
Available
Visible light lens
2.8mm to 12mm, 115°to 33.8°(near focus-far focus) ; 4.8mm to 120mm, 57.6 °to 2.5°(near focus to far focus) ; choose one of them
Image parameter
Video compression standard
Н.264
Image coding formats
JPEG
Protocol and storage
Network protocol
IPv4, HTTP, RTSP, TCP, UDP, DHCP
Sdk/api
Push alarm images and temperature information using HTTP protocol
System function
Language version
Chinese/English
Environmental parameters
Working temperature
-10 to 50℃ (For accurate temperature measuring, ambient temperature is 16 to 32 ℃)
Working humidity
≤ 95%, non-condensing
Physical parameters
Product size
≤173mm × 184mm × 212mm
Standard
Thermographic camera/black body/PC/4-port switch/power cord and network cable/stand
Net weight
≤45kg
Power consumption
≤12W
Software kit
PC software of automatic temperature measuring and alarm system
Installation mode

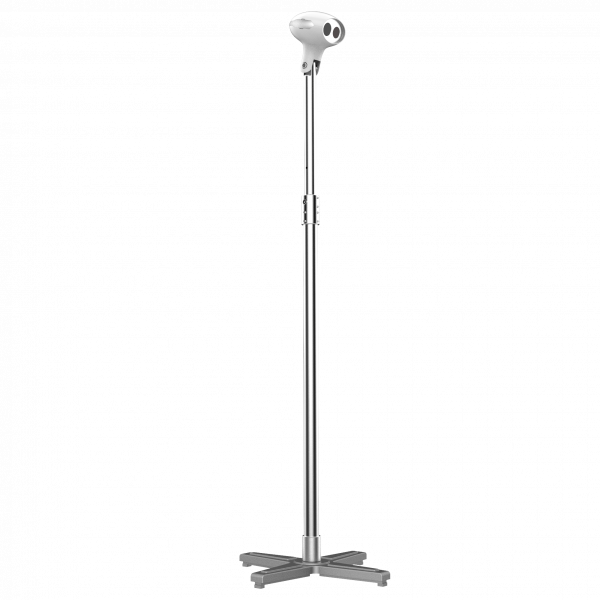

Wall mounting/ceiling mounting/vertical mounting
