Product Code: Guide TN650
Brand: Guide Sensmart
Reviews:
0
Found cheaper?
416 896.88₴
Ex Tax:
416 896.88₴
Buy in 1 click:
Specifications:
(See all)
Adjust detector brightness
10 levels
Adjust detector contrast
10 levels
Adjust screen brightness
10 levels
Auto sleep
Adjustable shutdown time from 5 min, 10 min to 15 min
Automatic shutdown
Adjustable shutdown time from 15min, 30min to 60min
TN Normae Series follows classic binocular design, greatly reducing the fatigue feeling of long-time observation. It adopts high-sensitivity VOx uncooled IR detector, bring you high quality imaging and immersive observation experience with full color OLED 1024×768 high-definition display. A variety of functions to meet all your needs, such as taking photos, videos, WIFI, laser ranging, GPS, compass, etc.
Functions
Adjust detector brightness
10 levels
Adjust detector contrast
10 levels
Adjust screen brightness
10 levels
Auto sleep
Adjustable shutdown time from 5 min, 10 min to 15 min
Automatic shutdown
Adjustable shutdown time from 15min, 30min to 60min
Hot spot tracking
Available
Language settings
Chinese/English/Russian/German/French
Pseudo colors
Black hot/white hot/adjustable red hot/ iron red/ blue hot/green hot
Scene mode adjustment
Three modes: enhancement, sensed and natural
Wi-Fi1
Transmission of real-time video via WiFi for remote control, 2.4G frequency band, distance up to 15m
Work indicator switch
Switch
Smooth zoom in
Available
Image enhancement
Available
Available
Video recording
Available
Compensation mode
Automatic compensation, shutter compensation and scene compensation
Rough ranging
Available
Infrared detector
NETD
≤50mk @ F1 25℃
Wavelength range
8～14μm
Resolution ratio
640×480
Lens
Field angle
8,78×6,59
Focusing mode
Manual focusing
Focal length
50 mm F1.2
Frame rate
Output frame frequenc
50Hz
Zoom multiple
Digital zoom multiple
1x—8x
Optical zoom multiple
2,8x
Visual effect
It's like viewing at a 22’‘ screen at a distance of 1m
Power supply
Battery
Replaceable 2*18650 batteries (the battery protection board is not considered)
Working time
Working time ≥5,5 hours @ 25℃ (only observe the state and use a specified battery for testing)
Interface
External extension
External display and external Bluetooth remote control
Mechanical interface
Picatinny
USB
Type C (USB 2.0 standard), with power supply function and data access
Video interface
Micro HDMI
Wifi
Transmission of real-time video via WiFi, 2.4G frequency, distance up to 15m
Display screen
Eyepiece
Monocular, exit pupil distance ≥16mm, adjustable diopter -4~＋2
Resolution ratio1
1024*768
Video output system
HDMI
Display screen
OLED, 0.39’’ × 2
Button
Butt
Switch/Up /menu/Down /Photo/video/Ranging
System
Pip
Capable to swipe left and up, or pause in the middle and swipe up; or swipe right and up to close
Startup time
15s (turn on to live image) @25℃
Time setting
Available
Watermark settings
Closure, and setting of date or date and location
Restore to default
Available
Memory capacit
16GB
Environmental parameters
Certificati
IP66/FCC/CE/Rohs/EAC/un38.3
Encapsulation
IP66
Humidity
10%~95%, non-condensing
Impact
30G/1ms semi-sinosoidal IEC60068-2-27
Vibration
10Hz~150Hz~10Hz 0.15mm as per IEC60068-2-6
Working temperature
-30℃—50℃
Storage temperature
-40℃~60℃
Drop test
1m
Physical parameters
Size
≤162*146*70mm
Standard
Equipped with a power adapter (compliance with FCC, CE, EAC, ROHS, etc.), a Type C cable, a micro HDMI, a lens cover;a shoulder strap, 2 * detachable light-blocking eye masks, a carrying bag, 2 * 18650 batteries (UN38.3), a Quick User Guide
Weight
≤880g
Optional
Bluetooth remote control
There are no reviews for this product, be the first to leave your review.
No questions about this product, be the first and ask your question.

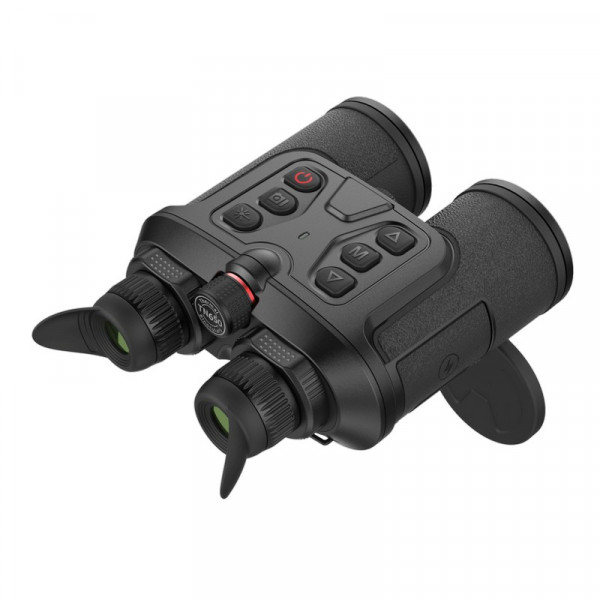

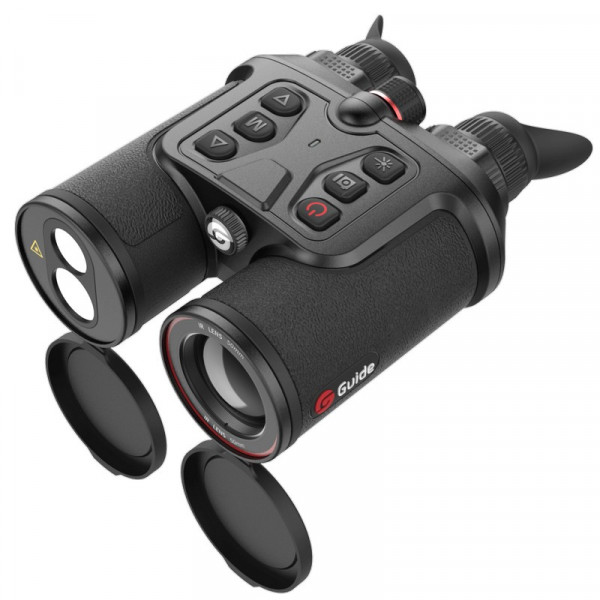

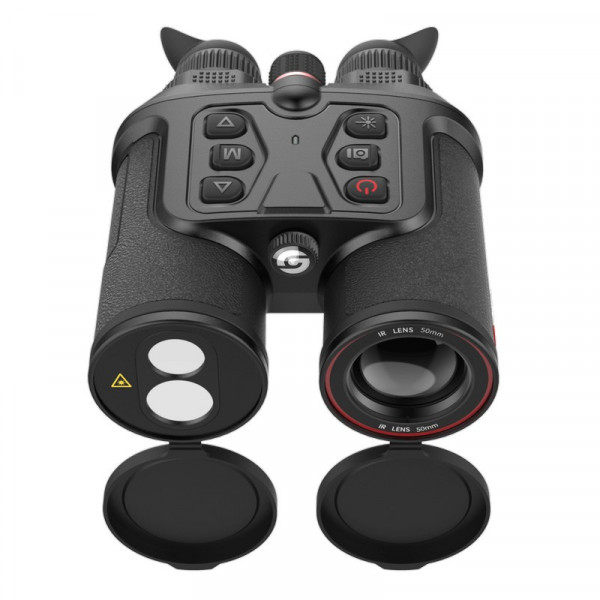

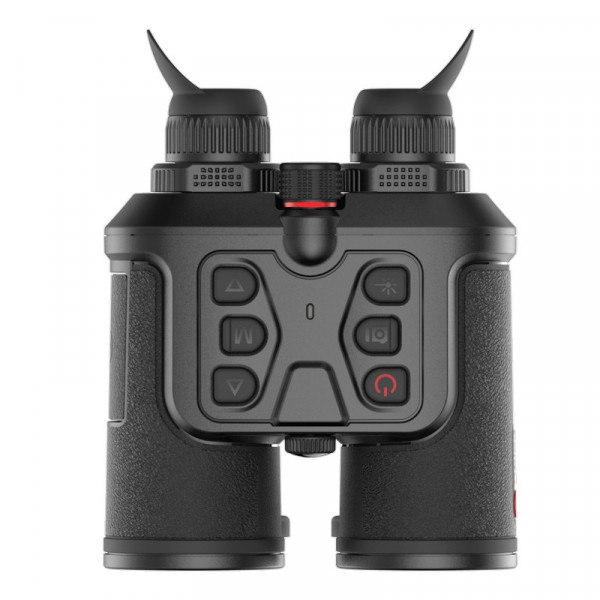

Handheld Thermal Binoculars Guide TN650
416 896.88₴
