Product Code: T120V
Brand: Guide Sensmart
Reviews:
0
Found cheaper?
26 244.00₴
Ex Tax:
26 244.00₴
Buy in 1 click:
Specifications:
(See all)
Size
194mm*61.5mm*76mm
Standard
A device, a wrist strap, a Quick Start Guide, a charger connector + adapter, a Type-C USB cable, a flash memory disk, 16G TF Card
Weight
About 350g
Battery type
Rechargeable lithium-ion battery, non-removable
Detector type
VOx
T120 Entry-level Thermal Image Camera is an affordable temperature measuring tool widely used for building diagnostics, HVAC inspections, electrical system inspections and more. It perfectly overcomes the shortcomings of the single spot infrared thermometers and helps work smarter, safer and faster. Equipped with Guide’s selfdeveloped 120x90 WLP IR modules, T120 series thermal cameras can display radiometric data of 10,800 pixels instantly which helps quickly detect large areas and pinpoint fault spots accurately.
Image displad
Display screen
2.4" LCD
Digital camera
7w
Image mode
IR, VIS and PIP
Image adjustment
Automatic
Palette
6 pseudo colors such as White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1
Power system
Battery type
Rechargeable lithium-ion battery, non-removable
Battery working time
≥5 H
Power management
Automatic shutdown, adjustable shutdown time from 1 min, 5 min, 10 min to 15 min
Charging mode
TYPE-C charging;PC/portable charger;Capable of charging while using
Charging time
90% of full charge in 2.5 hours
Storage and transmission
Storage medium
TF card (up to 32G)
Image storage format
JPG with temp info
External interface
TYPE-C, TF card slot, tripod interface
Laser
Class 2 laser, only indicating the measured target
Wifi
Available
Imaging and optics
Detector type
VOx
Infrared resolution
120*90
Wavelength range
7.5~14μm
Field angle
50°*38°
Minimum object distance
0,5 m
Infrared frame rate
25Hz/9Hz
Focus-free
Focus-free
Measurement and analysis
Measurement range
-20°C to 150°C, 100°C to 400°C (automatic switching)
Measurement accuracy
±2°C or ±2%, whichever is greater
Analyzed target
Center
Full-screen temperature tracking/alarm
Full-screen high/low temperature alarm ;Automatic high/low temperature tracking
Temperature measuring parameter
Emissivity, reflected temperature, target distance
Environmental paraments
Working temperature
-10℃~50℃
Storage temperature
-40℃~70℃
Degree of protection
IP54
Drop
2m drop test
Certificati
CE, FCC, ROHS, UN38.3+ air/sea freight, IP54, 2m, damp heat test, shock vibration test, impact test
Physical parameters
Size
194mm*61.5mm*76mm
Standard
A device, a wrist strap, a Quick Start Guide, a charger connector + adapter, a Type-C USB cable, a flash memory disk, 16G TF Card
Weight
About 350g
Software kit
ThermoTools
Opti
Tripod
There are no reviews for this product, be the first to leave your review.
No questions about this product, be the first and ask your question.

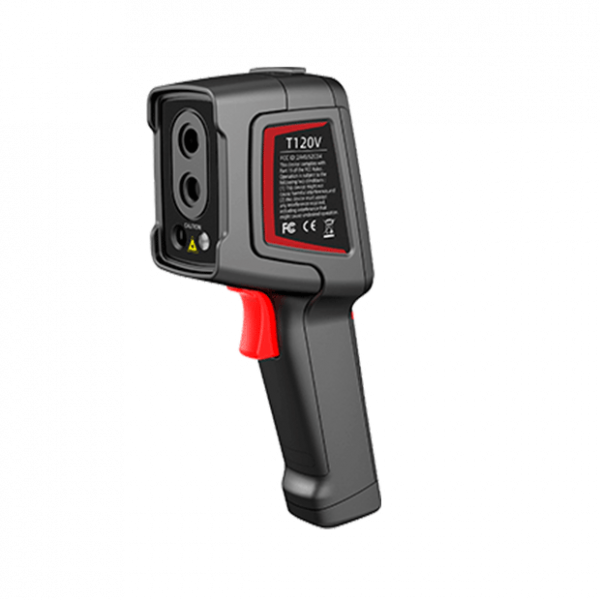

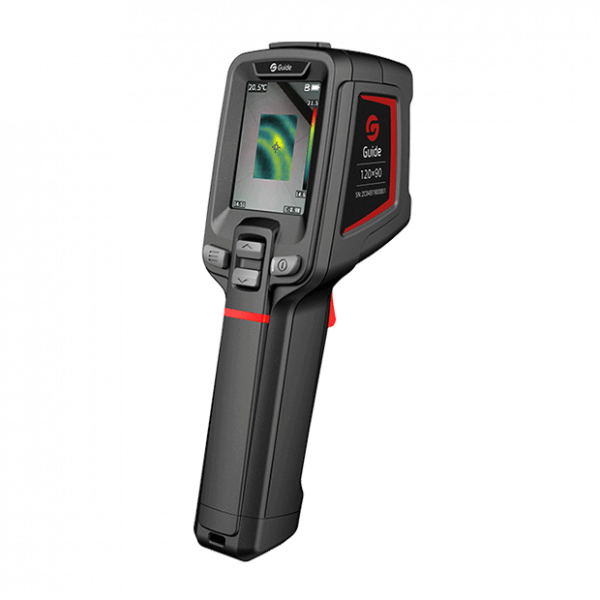

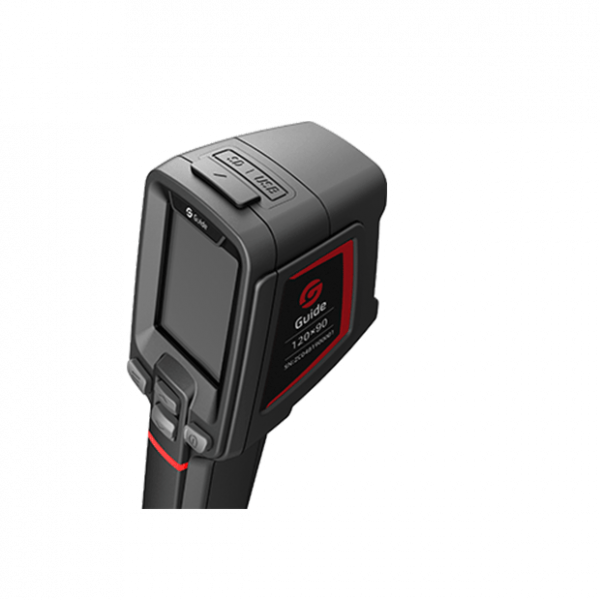

Handheld Thermal Camera T120V
