Specifications:
(See all)
Adjust detector brightness
5 levels
Adjust detector contrast
5 levels
Adjust screen brightness
5 levels
Auto sleep
Adjustable shutdown time from 5 min, 10 min to 15 min
Automatic shutdown
Adjustable shutdown time from 15min, 30min to 60min
TD Delphinus Series follow the design of traditional optical equipment. It is a small, lightweight , simple operation, and a wide range of application scenarios for infrared handheld thermal imaging monocular. TD Thermal scope has clear imaging and comfortable observation, suitable for mediumdistance and short-distance observation, It is an ideal equipment for outdoor night vision.
Functions
Adjust detector brightness
5 levels
Adjust detector contrast
5 levels
Adjust screen brightness
5 levels
Auto sleep
Adjustable shutdown time from 5 min, 10 min to 15 min
Automatic shutdown
Adjustable shutdown time from 15min, 30min to 60min
Hot spot tracking
Available
Language settings
Chinese/English
Laser indicator
Switch
Pseudo colors
Black hot/white hot/ red hot/ iron hot/blue hot
Scene mode adjustment
Three modes: enhancement, sensed and natural
Wi-Fi1
Transmission of real-time video via WiFi for remote control, 2.4G frequency band, distance up to 15m
Work indicator switch
Switch
Smooth zoom in
N/A
Super power saving mode
Capable to close WiFi and reduce screen brightness, etc.
Compensation mode
Automatic compensation, shutter compensation and scene compensation
Infrared detector
NETD
≤50mk @ F1 25℃
Wavelength range
8～14μm
Resolution ratio
400×300
Lens
Field angle
7,8*5,9
Focusing mode
Manual focusing
Focal length
35 mm F1.0
Frame rate
Output frame frequenc
50Hz
Zoom multiple
Digital zoom multiple
1x, 2x and 4x
Optical zoom multiple
4x
Visual effect
It's like viewing at a 22’‘ screen at a distance of 1m
Power supply
Battery
Replaceable 18650 battery (the battery protection board is not considered)
Working time
Working time ≥ 7 hours @ 25℃ (only observe the state and use a specified battery for testing)
Interface
External extension
External display and external Bluetooth remote control
Mechanical interface
Picatinny
USB
Type C (USB 2.0 standard), supporting analog video and power supply
Video interface
USB Type C
Wifi
Transmission of real-time video via WiFi, 2.4G frequency, distance up to 15m
Display screen
Eyepiece
Monocular, exit pupil distance ≥10mm, adjustable diopter -4~＋2
Eyepiece zoom multiple
14x
Resolution ratio1
1280*960
Video output system
Analog video
Display screen
FLCOS, 0,4
Button
Butt
ON/OFF/Brightness/Zoom in/Pseudo colors
System
Pip
Capable to swipe left and up, or pause in the middle and swipe up; or swipe right and up to close the app
Startup time
2s (from turn on to live image) @25℃
Environmental parameters
Certificati
IP67/FCC/CE/Rohs/EAC/un38.3
Encapsulation
IP66
Humidity
10%~95%, non-condensing
Impact
30G/1ms semi-sinosoidal IEC60068-2-27
Vibration
10Hz~150Hz~10Hz 0.15mm as per IEC60068-2-6
Working temperature
-10 ℃ to 50 ℃
Storage temperature
-30℃~60℃
Drop test
1m
Physical parameters
Standard
2 * 18650 chargers (China, US, UK, Australia and Europe), compliance with FCC, CE, EAC;RoHS/1 * 18650 battery /USB Type C cable/shoulder strap/carrying bag
Weight
≤320g
Optional
Bluetooth remote control
There are no reviews for this product, be the first to leave your review.
No questions about this product, be the first and ask your question.

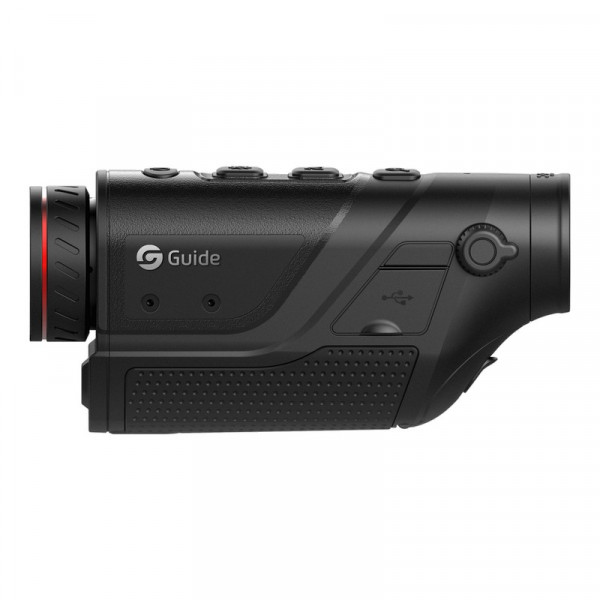

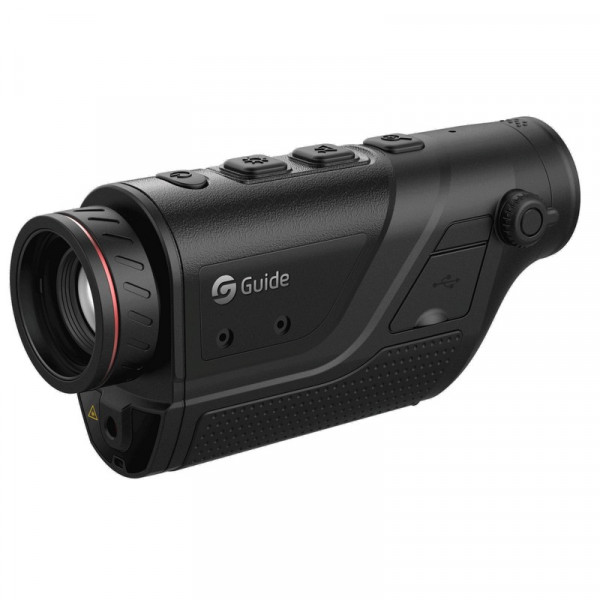

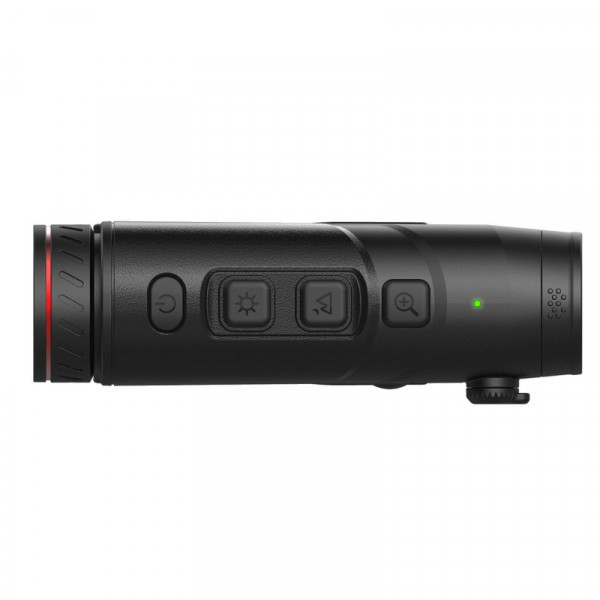

Handheld Thermal Imaging Monocular Guide TD430
