In Stock
Product Code: PS600
Brand: Guide Sensmart
Reviews:
0
Found cheaper?
888 468.75₴
Ex Tax:
888 468.75₴
Buy in 1 click:
Specifications:
(See all)
Eyepiece
1,280 * 960 LCOS screen
Size
206mm*145mm*135mm
Standard
A device, lens cover, 2 lithium batteries, power adapter, adapter plug (5), TYPE-C to USB cable, HDMI cable, network cable;Quick Start Guide, Instructions, flash memory disk, SD card (64GB), shoulder strap, carrying case and factory certificate
Weight
1.35Kg (with battery)
Battery type
Lithium-ion rechargeable battery

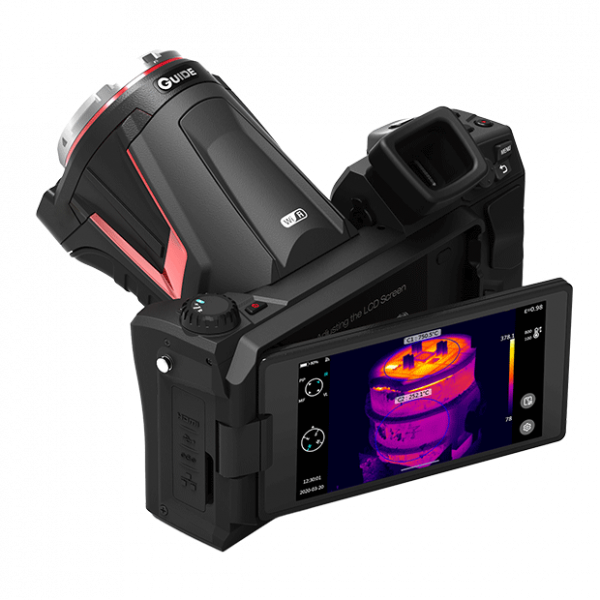

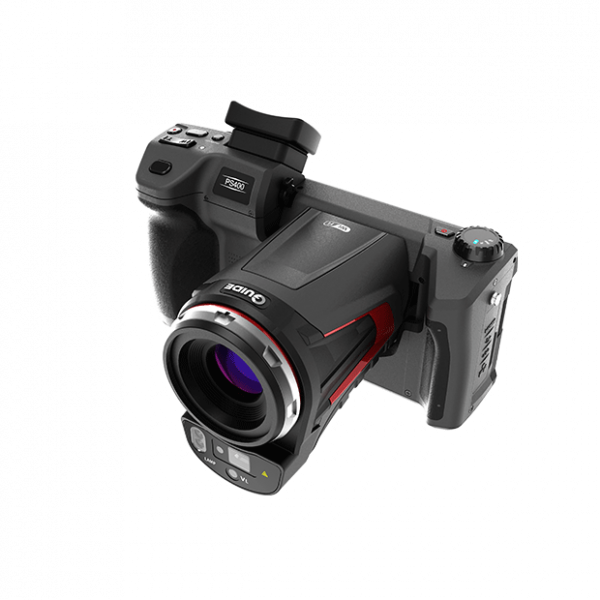

The Guide PS Series high-performance thermal camera is designed to make the inspection, maintenance and troubleshooting work easier, faster and more accurate. It adopts a new generation of uncooled IR focal-plane detectors, which provides sharper thermal images and higher measurement accuracy. With its rotatable lens and screen structure, up to 13 million pixels visible light camera module, high precision rangefinder, and supplemented by some professional functions such as AI recognition naming, intelligent area measurement, flexible emissivity settings by areas, super-resolution reconstruction, strive to meet the needs of every thermography experts.
Image displad
Display screen
5" LCD
Digital camera
1300w
Image mode
IR, VIS, MIF and PIP
Image adjustment
Automatic, semi-automatic, manual
Palette
8 colors, White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1, Fulgurite, Medical, customized
Power system
Battery type
Lithium-ion rechargeable battery
Battery working time
≥4 H
Power management
Timed shutdown and sleep mode
Charging mode
The device can be charged through desktop charger after shutdown.
Charging time
90% of full charge in 2.5 hours
Storage and transmission
Storage medium
TF card (up to 32G)
Image storage format
JPG with temp info
Video storage without temperature information
Mp4 format can be used to record audio synchronously
Video storage with temperature information
Irgd for temperature analysis
External interface
Type-C, DC (12V), SD card, Gigabit Ethernet, Micro HDMI, tripod interface
Laser
Laser, laser pointer which can be displayed on infrared image, laser ranging, laser focusing
Audio
Microphone (adjustable volume) Speaker (adjustable volume)
Wifi
Yes, it can be connected to the mobile terminal for data transmission
Bluetooth
Available
4g/5
4G
GPS
Available
Imaging and optics
Detector type
VOx
Infrared resolution
384*288
Super resolution technology
Support, upgrade to 1,280*960
Wavelength range
7.5~14μm
Field angle
25°*19°
Minimum object distance
0,3 m
Infrared frame rate
30 Hz/9Hz
Focus-free
Electric/Manual
Digital zoom
1,1~35 1,1~35
Shot recognition
Auto/manual
Measurement and analysis
Measurement range
-40-150℃, 100-800℃, automatic switching, external lenses, up to 2,000℃, and the range of level 3 is: 700℃-2000℃
Measurement accuracy
±2°C or ±2%, whichever is greater
Analyzed target
16 temperature measuring spots, 16 temperature measuring lines, 16 temperature measuring areas, and temperature difference
Full-screen temperature tracking/alarm
Tracking of both full-screen and analyzed target maximum temperature/minimum temperature/average temperature;Alarm: Visual and voice, and area alarm function
Isothermals
Upward, downward, inside and outside the interval
Temperature measuring parameter
Emissivity, reflected temperature, target distance, humidity, atmospheric transmittance, optical transmittance
Display screen
Eyepiece
1,280 * 960 LCOS screen
Environmental paraments
Working temperature
-20℃~50℃
Storage temperature
-40℃~70℃
Degree of protection
IP54
Drop
1.2m (with package)
Certificati
CE, FCC, ROHS, UN38.3 +air/sea freight + MSDS + 1.2m drop test for packages;Certifications of National Infrared and Industrial Electrical Heating Product Quality Supervision and Inspection Center and Hubei Institute of Measurement and Testing Technology;D
Physical parameters
Size
206mm*145mm*135mm
Standard
A device, lens cover, 2 lithium batteries, power adapter, adapter plug (5), TYPE-C to USB cable, HDMI cable, network cable;Quick Start Guide, Instructions, flash memory disk, SD card (64GB), shoulder strap, carrying case and factory certificate
Weight
1.35Kg (with battery)
Software kit
ThermoTools
Opti
A Lithium-ion battery, a carrying bag, a desktop charger, a Bluetooth headset, an expanded lens, a 4G module, a tripod
