Specifications:
(See all)
Size
133.05*87.31*24.1mm
Standard
A device, a carrying bag, a wrist strap, a Quick Start Guide, a charger connector + adapter, TYPE-C data cable, flash memory disk
Weight
240g
Battery type
Rechargeable lithium-ion battery, non-removable
Detector type
VOx

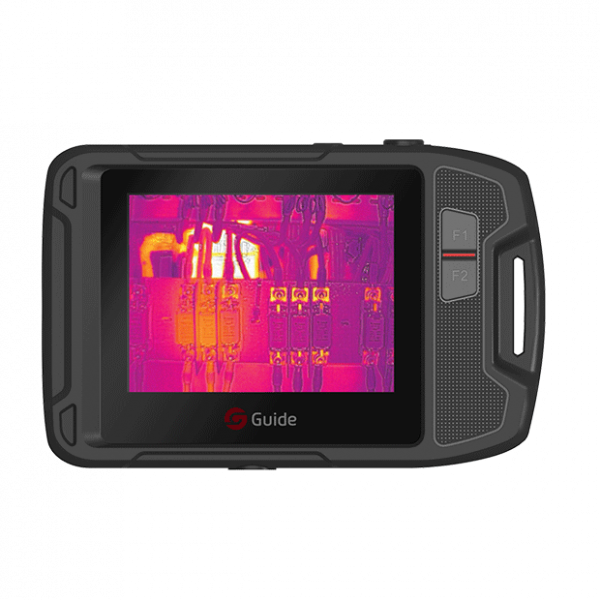

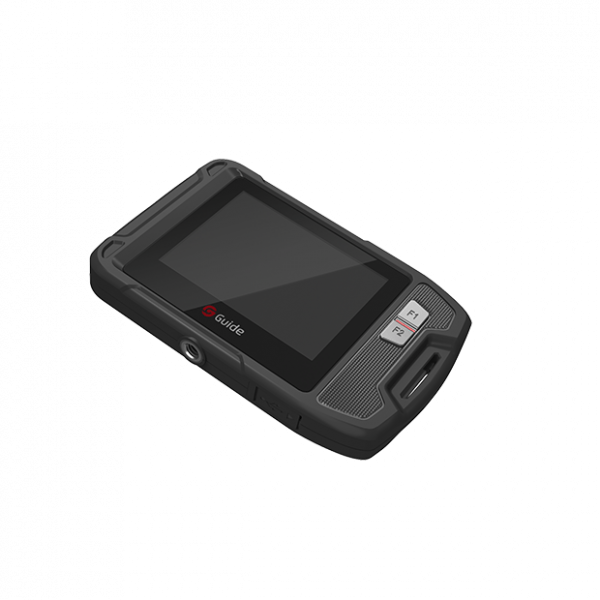

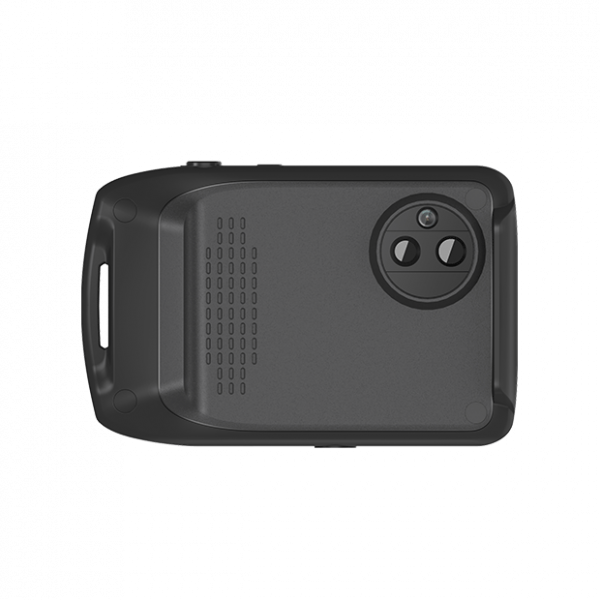

P120V Pocket-sized Thermal Camera designed for electrical equipment maintenance and building inspection, which can fast detect the potential problems, report repair data and share images by Wi-Fi. It is a truly handy thermal camera that fits in your pockets for fast and accurate thermal inspections anytime. P120V featured with 3.5-inch LCD touchscreen for simple operation, and support picture-in-picture, smooth zoom, max and min temperature alarm, Cloud Service and more.
Image displad
Display screen
3.5" LCD
Image mode
IR, VIS, MIF and PIP
Image adjustment
Automatic, semi-automatic, manual
Palette
6 pseudo colors such as White Hot, Iron Red, Arctic, Rainbow 2, Hot Iron, Rainbow 1
Power system
Battery type
Rechargeable lithium-ion battery, non-removable
Battery working time
≥2 H
Power management
Automatic shutdown, and adjustable shutdown time from 5 min, 10 min to 20 min
Charging mode
TYPE-C charging;PC/portable charger;Capable of charging while using
Charging time
90% of full charge in 1.5 hours
Storage and transmission
Storage medium
Local storage
Image storage format
JPG with temp info
External interface
TYPE-C, tripod interface
Wifi
Yes, it can be connected to the mobile terminal for data transmission
Imaging and optics
Detector type
VOx
Infrared resolution
120*90
Wavelength range
7.5~14μm
Field angle
50°*38°
Minimum object distance
0,5 m
Infrared frame rate
15Hz/9Hz
Focus-free
Focus-free
Digital zoom
1.1~8 1.1~8
Measurement and analysis
Measurement range
-20℃-150℃, 100℃-400℃ (automatic switching)
Measurement accuracy
±2°C or ±2%, whichever is greater
Analyzed target
1 temperature measuring spot 1 temperature measuring area
Full-screen temperature tracking/alarm
1. Full-screen maximum temperature/minimum temperature tracking;2. The maximum or minimum temperature tracking of analyzed target (area)
Temperature measuring parameter
Emissivity, reflected temperature, target distance
Environmental paraments
Working temperature
-10℃~50℃
Storage temperature
-40℃~70℃
Degree of protection
IP54
Drop
1m (bare device)
Certificati
CE, FCC, ROHS
Physical parameters
Size
133.05*87.31*24.1mm
Standard
A device, a carrying bag, a wrist strap, a Quick Start Guide, a charger connector + adapter, TYPE-C data cable, flash memory disk
Weight
240g
Software kit
ThermoTools
Opti
Tripod
