Specifications:
(See all)
Peculiarities
An alarm configuration can be programmed for each channel.
Alarm notification via SMS, E-Mail.
Communication via radio channel, GSM/GPRS, USB.
Power supply
internal L-battery, < 5 years (standard configuration)
Digital
0...5 V (max. 4 channels), frequency/pulse
Internal pressure sensors
Option: 0...16 bar
(25, 35, others on request)
Receiving interval
1 s...24 h

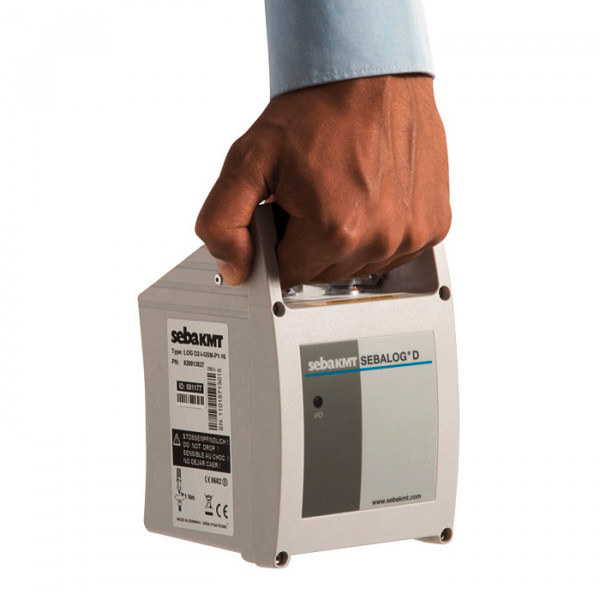

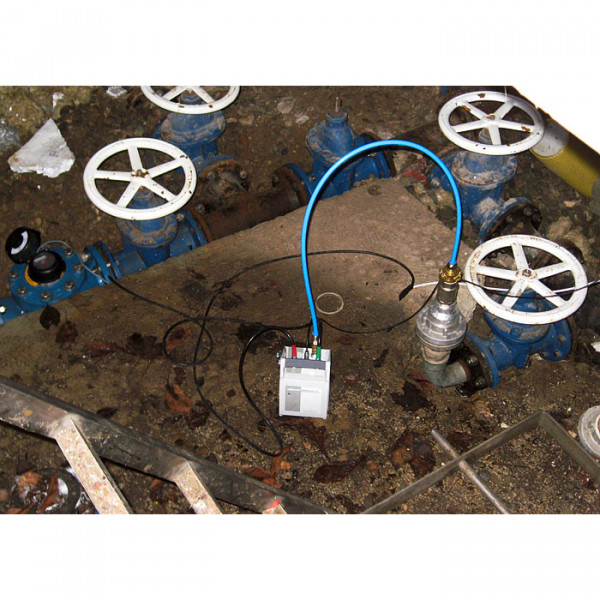

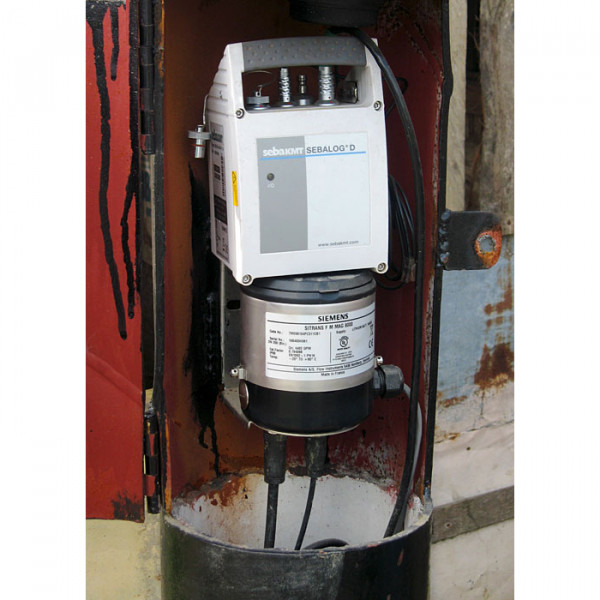

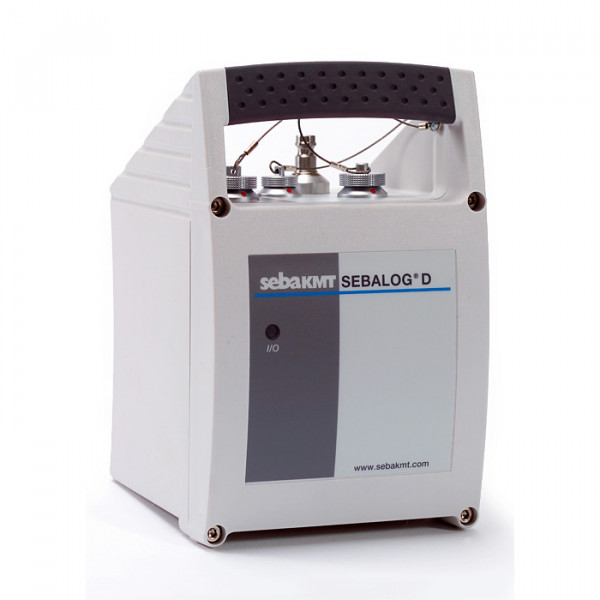

The Sebalog D data logger has been designed specifically for the needs of utility companies. It can perform tasks from simple pressure measurement via optional internal pressure transducer to comprehensive pressure and fluid flow monitoring with 4 input channels and data communication via GSM. Sebalog D is suitable for all diverse water quality applications.
Technical data
Operating temperature
-10 °С ... +50 °С
Memory
4 MB block or ring
Weight
0.8 kg
Protection class
IP68
Dimensions
115x115x180 mm
Input and output channels
Digital
0...5 V (max. 4 channels), frequency/pulse
Analog
0...20 mA (max. 2 channels)
Relay inputs
2
Relay outputs
2
Additional features
Peculiarities
An alarm configuration can be programmed for each channel.
Alarm notification via SMS, E-Mail.
Communication via radio channel, GSM/GPRS, USB.
Sensors
Internal pressure sensors
Option: 0...16 bar
(25, 35, others on request)
External pressure sensors
Option: 0...16 bar
(25, 35, others on request)
Loggers
Receiving interval
1 s...24 h
Recognition water hammer
0.1 s or 1 s. The transition value is freely programmable
Autonomy
Power supply
internal L-battery, < 5 years (standard configuration)
There are no reviews for this product, be the first to leave your review.
No questions about this product, be the first and ask your question.
Sebalog Dx pressure and flow rate data logger with GSM modem
