Product Code: TA425
Brand: Guide Sensmart
Reviews:
0
Found cheaper?
218 700.00₴
Ex Tax:
218 700.00₴
Buy in 1 click:
Specifications:
(See all)
Adjust detector brightness
10 levels
Adjust detector contrast
10 levels
Adjust screen brightness
10 levels
Auto sleep
Adjustable shutdown time from 5 min, 10 min to 15 min
Automatic shutdown
Adjustable shutdown time from 15min, 30min to 60min
GUIDE TA Series is a versatile clip-on thermal imaging attachment which helps transform the daylight optics into a thermal imager. It can be taken as a thermal imaging attachment adding thermal imaging capability to your scope, or as a portable thermal imaging monocular as well. This compact, lightweight and durable device can be quickly mounted and dismounted without re-zeroing, providing excellent image in various environments.
Functions
Adjust detector brightness
10 levels
Adjust detector contrast
10 levels
Adjust screen brightness
10 levels
Auto sleep
Adjustable shutdown time from 5 min, 10 min to 15 min
Automatic shutdown
Adjustable shutdown time from 15min, 30min to 60min
Hot spot tracking
Available
Language settings
Either Chinese or English
Pseudo colors
White Hot/ Black Hot/Red Hot/Green Hot
Scene mode adjustment
Three modes: enhancement, sensed and natural
Compensation mode
Automatic compensation, manual compensation, scene compensation
Infrared detector
NETD
≤50mk @ F1 25℃
Wavelength range
8~14μm
Resolution ratio
384 × 288
Lens
Field angle
14,6×11,0
Focusing mode
Manual
Focal length
25mm F1.1
Frame rate
Output frame frequenc
50Hz
Zoom multiple
Digital zoom multiple
1x, 2x и 4x
Optical zoom multiple
1x
Power supply
Battery
2xCR123A
Working time
Battery continuous working time ≥ 3 hours @ 25 ℃
Interface
Mechanical interface
Picatinny
Video interface
LEMO
Display screen
Eyepiece
Exit pupil distance ≥ 10mm Exit pupil diameter ≥ 20mm
Eyepiece zoom multiple
14x
Resolution ratio1
1024*768
Video output system
Analog
Display screen
OLED, 0,39
Button
Butt
Switch Up Menu Down
System
Startup time
10s (from pressing the switch to appearance of real-time image) @25℃
There are no reviews for this product, be the first to leave your review.
No questions about this product, be the first and ask your question.

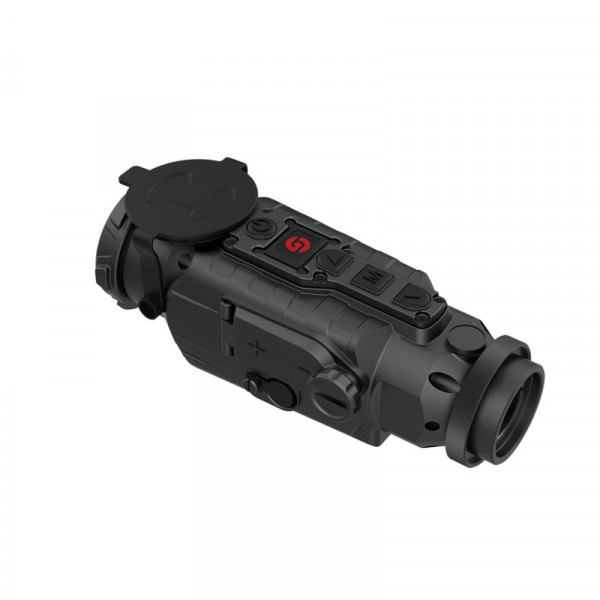

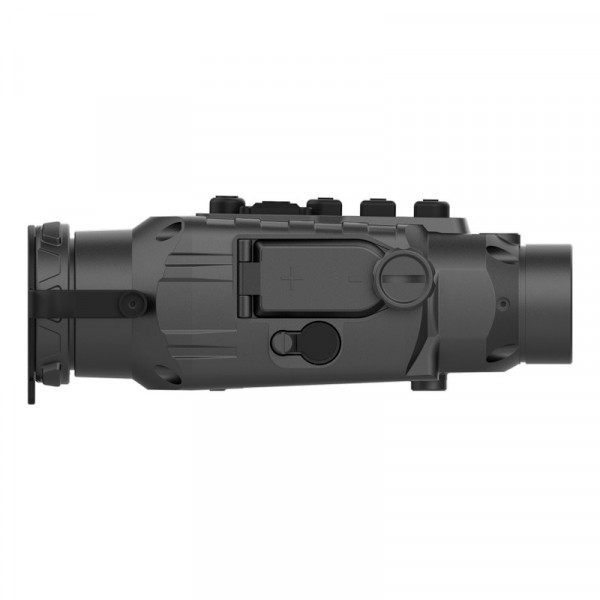

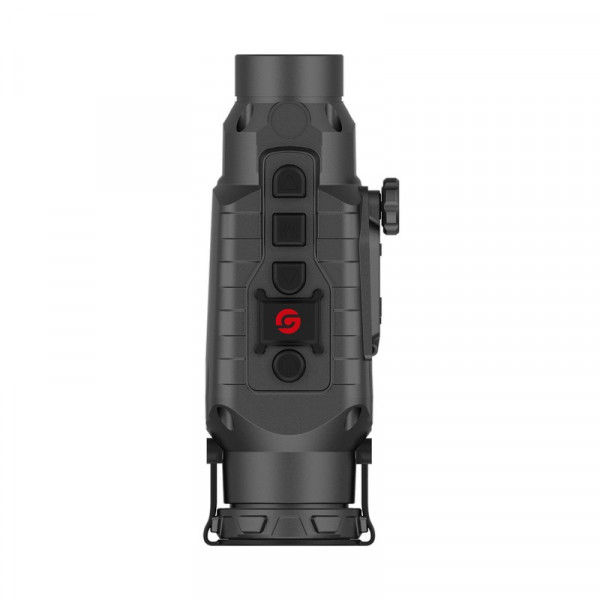

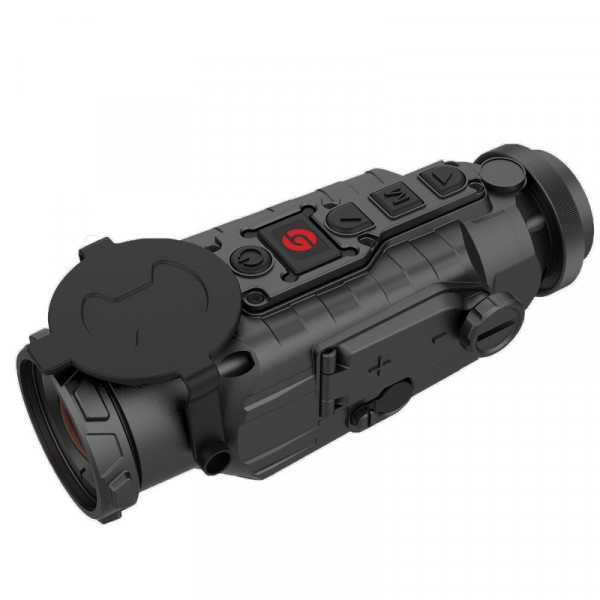

Clip-on Thermal Imaging Attachment Guide TA425
