Product Code: P755-LOG BT
Brand: Dostmann
Reviews:
0
Found cheaper?
0.00₴
Ex Tax:
0.00₴
Buy in 1 click:
Specifications:
(See all)
Measuring range
Pt100 -200°С...+850°С
Thermocouple according to DIN (-200°C...+1760°C)
Ohm 0...400 Ohm
Humidity 0%...100% RH
Flow rate 0...40 m/s
Accuracy
Pt100 ±0.03°С from -50°С...+199.99°С
±0.05°С from -200°С...+200°С
otherwise 0.05%
Thermocouple R, S ±1.0°C +0.1%
Thermocouple K, J, L, N, T
±0.2°С from 0°С...+200°С
±0.5°C up to 1000°C
±1.0°C remaining range
Humidity ±1.5% r.h. humidity
Flow 1% of the final cost
Ohm 0.5% of measuring range
Permission
0.01°C -200°C to +200°C
otherwise 0.1°C respectively 0.1%
Display resolution
2-line LCD
Measurement channels
Inputs 2-channel, Pt100, thermocouple: type K, J, L, N, R, S, T,
humidity, dew point, flow
High-precision 2-channel device with 0.01°C and Bluetooth connection for the DEGrph Blue app incl. Bluetooth connection for the DEGraphBlue app (App can be downloaded for free from the Play or App Store)
Technical data
Measuring range
Pt100 -200°С...+850°С
Thermocouple according to DIN (-200°C...+1760°C)
Ohm 0...400 Ohm
Humidity 0%...100% RH
Flow rate 0...40 m/s
Accuracy
Pt100 ±0.03°С from -50°С...+199.99°С
±0.05°С from -200°С...+200°С
otherwise 0.05%
Thermocouple R, S ±1.0°C +0.1%
Thermocouple K, J, L, N, T
±0.2°С from 0°С...+200°С
±0.5°C up to 1000°C
±1.0°C remaining range
Humidity ±1.5% r.h. humidity
Flow 1% of the final cost
Ohm 0.5% of measuring range
Permission
0.01°C -200°C to +200°C
otherwise 0.1°C respectively 0.1%
Display resolution
2-line LCD
Measurement channels
Inputs 2-channel, Pt100, thermocouple: type K, J, L, N, R, S, T,
humidity, dew point, flow
Connectors
DIN connectors 8-pole
Operating temperature
0°C...+40°C
Weight
300 g
Housing
Plastic
Power supply
Battery 9 V
Battery life
approx. 20 h
Dimensions
200 x 93 x 44 mm (LxWxH)
There are no reviews for this product, be the first to leave your review.
No questions about this product, be the first and ask your question.

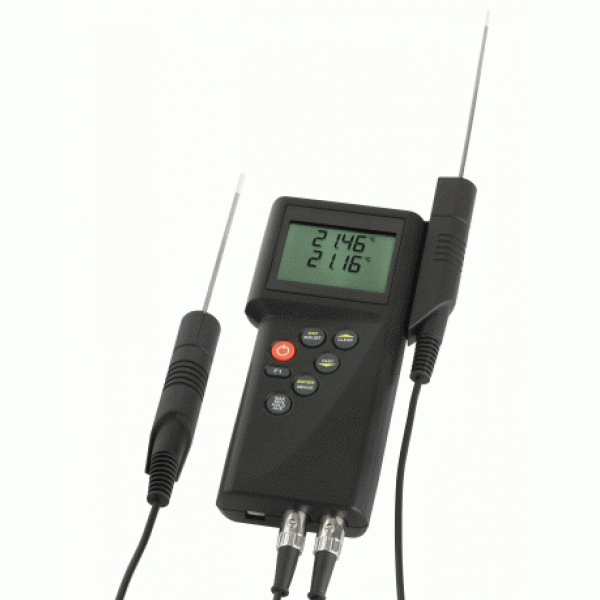

P755-LOG multi-function instrument incl. BT connection
