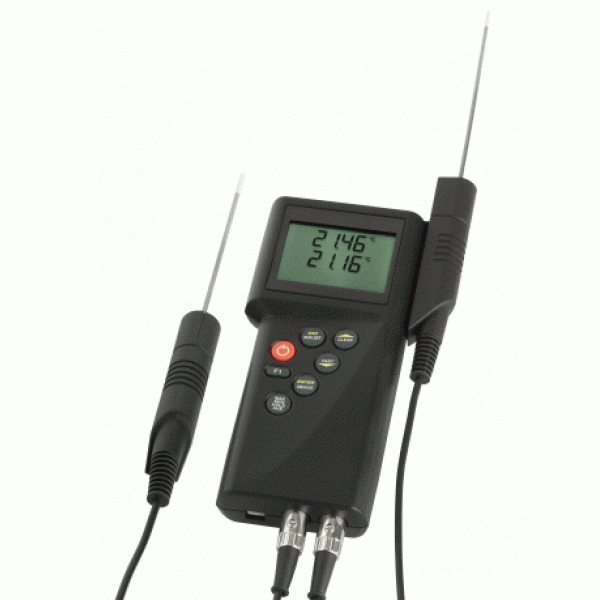

P755-LOG multi-function instrument
Product Code: P755-LOG
Brand: Dostmann
Reviews: 0
Found cheaper?
0.00₴
Ex Tax: 0.00₴
Buy in 1 click:
Specifications: (See all)
Measuring range
Pt100 -200°С...+850°С Thermocouple according to DIN (-200°C...+1760°C) Ohm 0...400 Ohm Humidity 0%...100% RH Flow rate 0...40 m/s
Accuracy
Pt100 ±0.03°С from -50°С...+199.99°С ±0.05°С from -200°С...+200°С otherwise 0.05% Thermocouple R, S ±1.0°C +0.1% Thermocouple K, J, L, N, T ±0.2°С from 0°С...+200°С ±0.5°C up to 1000°C ±1.0°C remaining range Humidity ±1.5% r.h. humidity Flow 1% of the final cost Ohm 0.5% of measuring range
Permission
0.01°C -200°C to +200°C otherwise 0.1°C respectively 0.1%
Display resolution
2-line LCD
Measurement channels
Inputs 2-channel, Pt100, thermocouple: type K, J, L, N, R, S, T, humidity, dew point, flow
Description

High-precision data logger for temperature (±0.03), relative humidity, dew point, air flow with memory for 6000 measurements. The instrument is intended for quality assurance applications, i.e. testing climate chambers, calibration thermostats, furnaces... or thermoelectric processes. For a battery powered instrument, we provide a separate power supply as an option. The measurement interval is adjustable from 1 second to 30 minutes. By using our precision Pt100 probes with a probe calibration code, you will achieve the system accuracy described on page 12. The P755-LOG measuring system is the ideal reference for testing slave instruments or systems.


Specifications
Technical data
Measuring range
Pt100 -200°С...+850°С Thermocouple according to DIN (-200°C...+1760°C) Ohm 0...400 Ohm Humidity 0%...100% RH Flow rate 0...40 m/s
Accuracy
Pt100 ±0.03°С from -50°С...+199.99°С ±0.05°С from -200°С...+200°С otherwise 0.05% Thermocouple R, S ±1.0°C +0.1% Thermocouple K, J, L, N, T ±0.2°С from 0°С...+200°С ±0.5°C up to 1000°C ±1.0°C remaining range Humidity ±1.5% r.h. humidity Flow 1% of the final cost Ohm 0.5% of measuring range
Permission
0.01°C -200°C to +200°C otherwise 0.1°C respectively 0.1%
Display resolution
2-line LCD
Measurement channels
Inputs 2-channel, Pt100, thermocouple: type K, J, L, N, R, S, T, humidity, dew point, flow
Connectors
DIN connectors 8-pole
Operating temperature
0°C...+40°C
Weight
300 g
Housing
Plastic
Power supply
Battery 9 V
Battery life
approx. 20 h
Dimensions
200 x 93 x 44 mm (LxWxH)
