Product Code: P755
Brand: Dostmann
Reviews:
0
Found cheaper?
0.00₴
Ex Tax:
0.00₴
Buy in 1 click:
Specifications:
(See all)
Measuring range
Pt100 -200°С...+850°С
Thermocouple according to DIN (-200°C...+1760°C)
Ohm 0...400 Ohm
Humidity 0%...100% RH
Flow rate 0...40 m/s
Accuracy
Pt100 ±0.03°С from -50°С...+199.99°С
±0.05°С from -200°С...+200°С
otherwise 0.05%
Thermocouple R, S ±1.0°C +0.1%
Thermocouple K, J, L, N, T
±0.2°С from 0°С...+200°С
±0.5°C up to 1000°C
±1.0°C remaining range
Humidity ±1.5% r.h. humidity
Flow 1% of the final cost
Ohm 0.5% of measuring range
Permission
0.01°C -200°C to +200°C
otherwise 0.1°C respectively 0.1%
Display resolution
2-line LCD
Measurement channels
Inputs 2-channel, Pt100, thermocouple: type K, J, L, N, R, S, T,
humidity, dew point, flow
Technical data
Measuring range
Pt100 -200°С...+850°С
Thermocouple according to DIN (-200°C...+1760°C)
Ohm 0...400 Ohm
Humidity 0%...100% RH
Flow rate 0...40 m/s
Accuracy
Pt100 ±0.03°С from -50°С...+199.99°С
±0.05°С from -200°С...+200°С
otherwise 0.05%
Thermocouple R, S ±1.0°C +0.1%
Thermocouple K, J, L, N, T
±0.2°С from 0°С...+200°С
±0.5°C up to 1000°C
±1.0°C remaining range
Humidity ±1.5% r.h. humidity
Flow 1% of the final cost
Ohm 0.5% of measuring range
Permission
0.01°C -200°C to +200°C
otherwise 0.1°C respectively 0.1%
Display resolution
2-line LCD
Measurement channels
Inputs 2-channel, Pt100, thermocouple: type K, J, L, N, R, S, T,
humidity, dew point, flow
Connectors
DIN connectors 8-pole
Operating temperature
0°C...+40°C
Weight
300 g
Housing
Plastic
Power supply
Battery 9 V
Battery life
approx. 20 h
Dimensions
200 x 93 x 44 mm (LxWxH)
There are no reviews for this product, be the first to leave your review.
No questions about this product, be the first and ask your question.

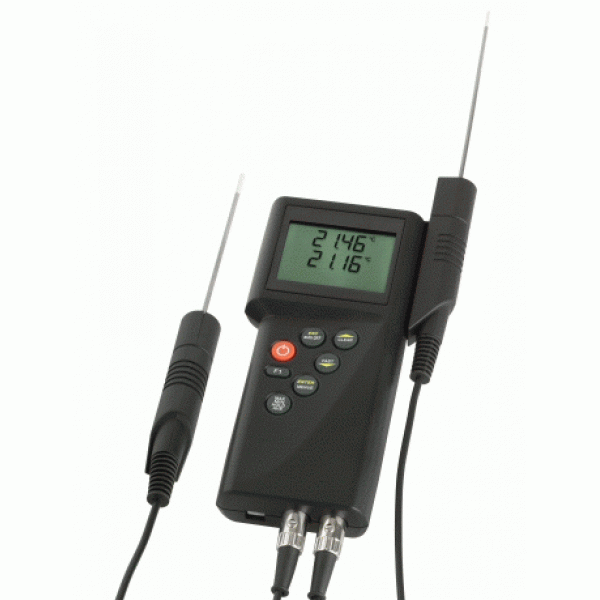

P755 multi-function instrument
