Specifications:
(See all)
inputs
Pt100 inputs according to EN 60751
Measuring range
Pt100 -200°C...+850°C
Accuracy
Pt100 ±0.015°С from -50°С...+199.99°С
±0.025% of reading for the rest of the range
Permission
0.001°C -200°C to +200°C
remaining range 0.01°C
Connectors
8-pole DIN 45326
High precision temperature measuring instrument (±0.01), with 6000 measurement memory. The instrument is intended for quality assurance applications, i.e. testing climate chambers, calibration thermostats, furnaces... or thermoelectric processes. For a battery powered instrument, we provide a separate power supply as an option. The measurement interval is adjustable from 1 second to 30 minutes. The P795 measurement system is the ideal reference for testing downstream instruments or systems.
Technical data
inputs
Pt100 inputs according to EN 60751
Measuring range
Pt100 -200°C...+850°C
Accuracy
Pt100 ±0.015°С from -50°С...+199.99°С
±0.025% of reading for the rest of the range
Permission
0.001°C -200°C to +200°C
remaining range 0.01°C
Connectors
8-pole DIN 45326
Measuring interval
Adjustable: 1 second...30 minutes
Operating temperature
0°C...+40°C
output
USB
Display
2-line LCD
Memory
6000 measurements
Weight
300 g
Housing
plastic (ABS)
Power supply
Battery 9 V
Battery life
approx. 20 h
Dimensions
200 x 85 x 40 mm (LxWxH)
There are no reviews for this product, be the first to leave your review.
No questions about this product, be the first and ask your question.

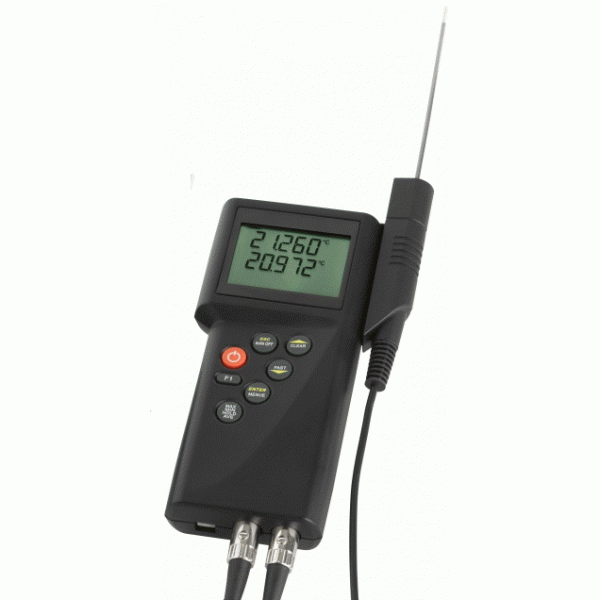

P795 Reference Thermometer
