Small and rugged Sebalog P-3-Mini pressure monitoring and water hammer logger

All about product
Specification
Reviews
0
Questions
0
In Stock
Product Code: Sebalog P-3-Mini
Brand: Megger
Reviews: 0
Found cheaper?
0.00₴
Ex Tax: 0.00₴
DataSheet
Buy in 1 click:
Specifications: (See all)
Certificati
IP 68
Measuring range
0 ... 25 bar
Working temperature
-20 to +70 °C
Permission
0.03%, (~0.008 bar)
Storage temperature
-20 to +70 °C
Description

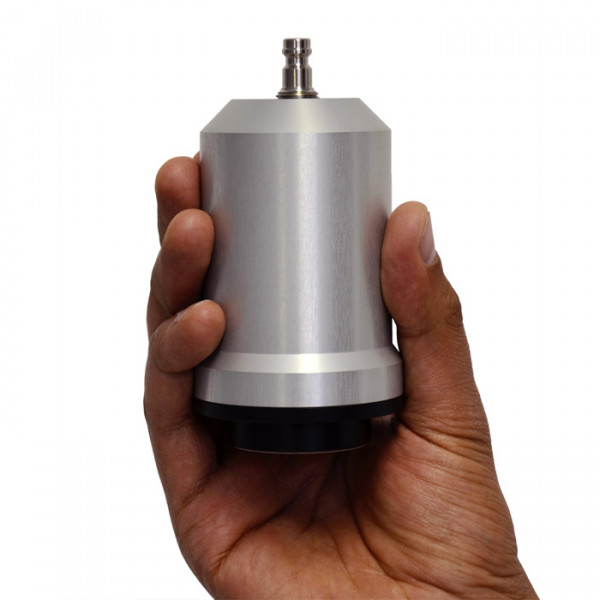

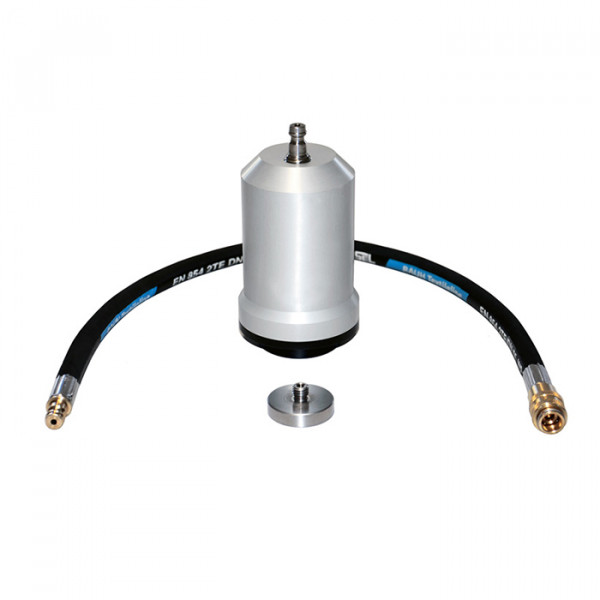

Extremely small and rugged data logger for pressure monitoring and water hammer recording.

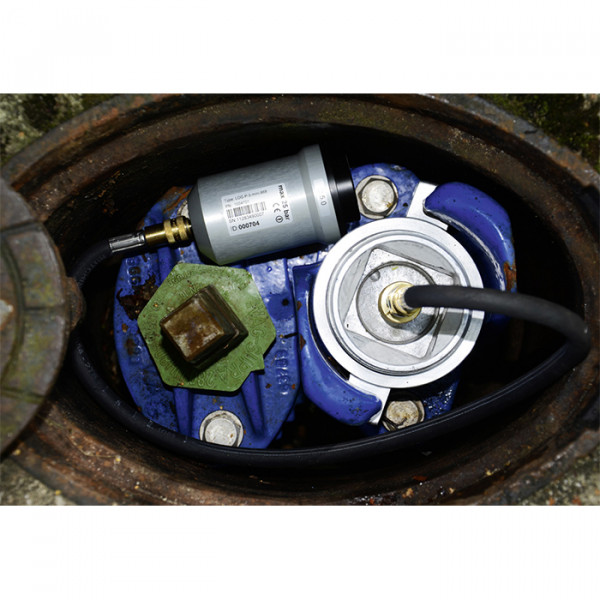

The Sebalog P-3-Mini is the ideal pressure monitor for water supply networks. The extremely rugged housing of the Sebalog P-3-Mini allows it to be used continuously in harsh field conditions. Moreover, the compact design of the pressure recorder is a great advantage in mines with limited installation space. From the Sebalog P-3-Mini logger it is possible to read the measured data wirelessly without opening the manhole hatch and, in combination with the GSM GT-3 transmitter, to easily transmit the measured data to the control room.


Specifications
Main characteristics
Аccuracy
<1%
Technical data
Measuring range
0 ... 25 bar
Permission
0.03%, (~0.008 bar)
Display
Status LEDs
Interface
short radio link (868 MHz)
Memory
4 MB (corresponds to >1 million measurements)
Weight
approx. 365 g
Power supply
int. lithium battery
Battery life
approx. 5 years or 10 million measurements (depending on usage)
Dimensions
120 x 63 mm Ø
Environmental parameters
Certificati
IP 68
Working temperature
-20 to +70 °C
Storage temperature
-20 to +70 °C
